Meat Band Saw

KEY FEATURES

⚡ Motor Power: 0.75kW, 220VAC, 50Hz (high torque)

⚙️ Drive System: V-belt, key and keyway – robust and reliable

🏗️ Construction: Cast aluminium frame with stainless steel contact surfaces

🔪 Blade & Guides:

• Saw blade: 2200mm x 16mm x 0.5mm, 4TPI
• Speed: 9m/s
• Nylon and brass blade stabilizers ensure precision
• Scraper fitted to inside of blade
• Spring-loaded manual tension system for constant blade performance

📏 Cutting Dimensions:

• Work opening: W260mm x H310mm
• Stainless steel sliding board and adjustable thickness guide included

🔁 Ease of Use:

• Blade access via quick-remove front work surface panel
• Smooth-glide stainless steel work surface
• Sliding board and thickness guide can be removed if not needed

🧼 Hygiene-Focused Design: Easy disassembly and cleanable internal frame

🧱 Included Stand: Supplied standard with machine

🇿🇦 Proudly South African: Locally made, serviceable, and covered by a 1-year technical warranty

PRODUCT DESCRIPTION

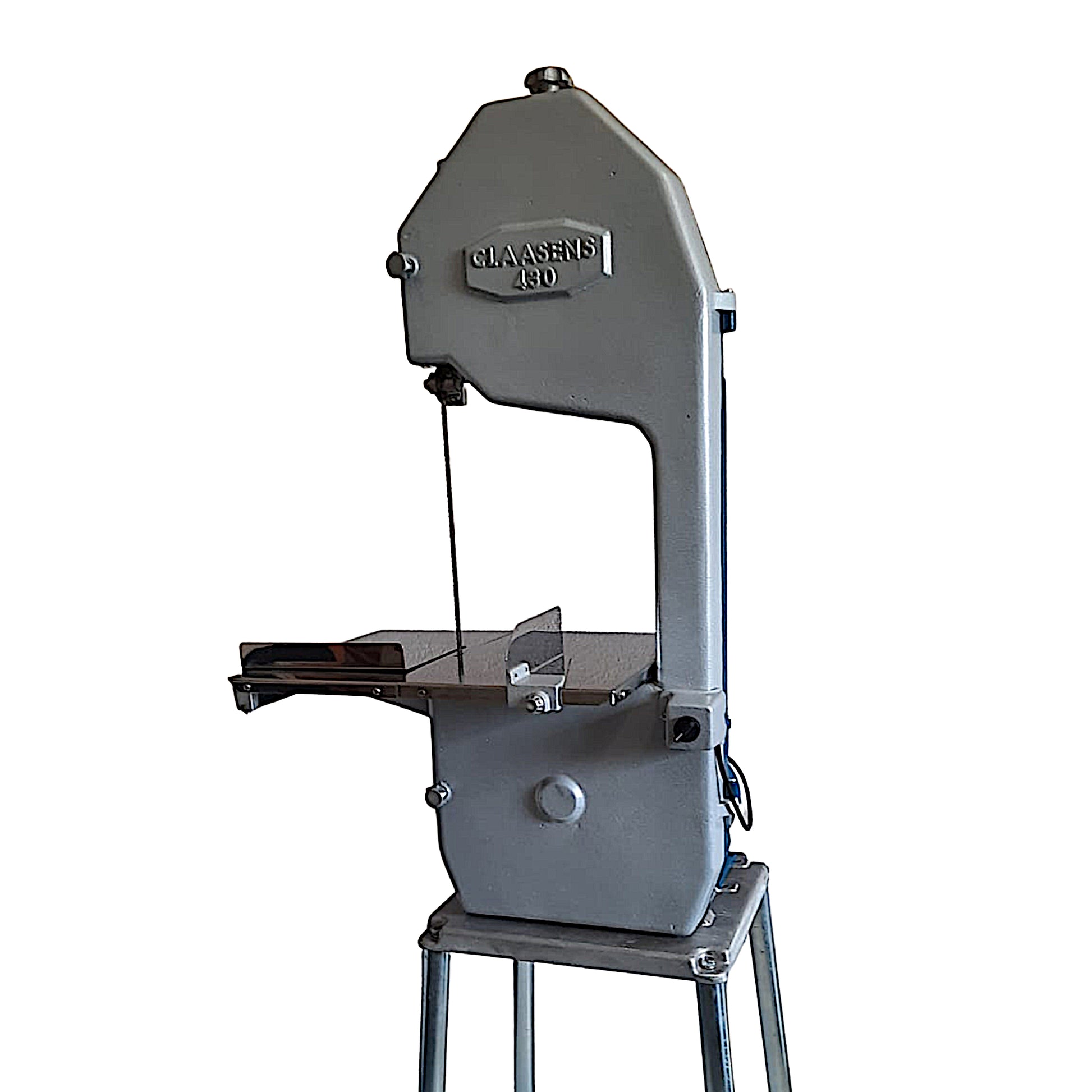

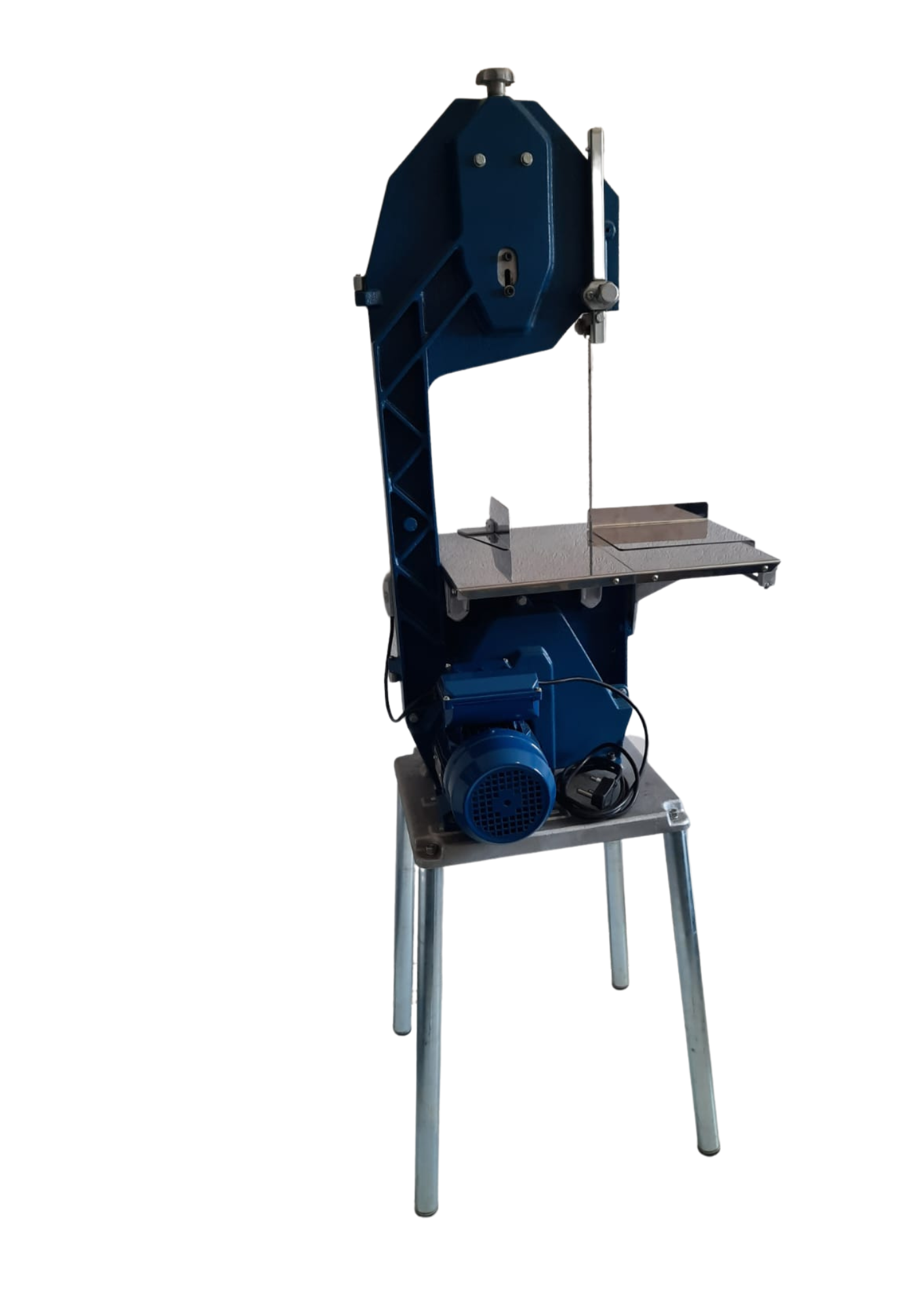

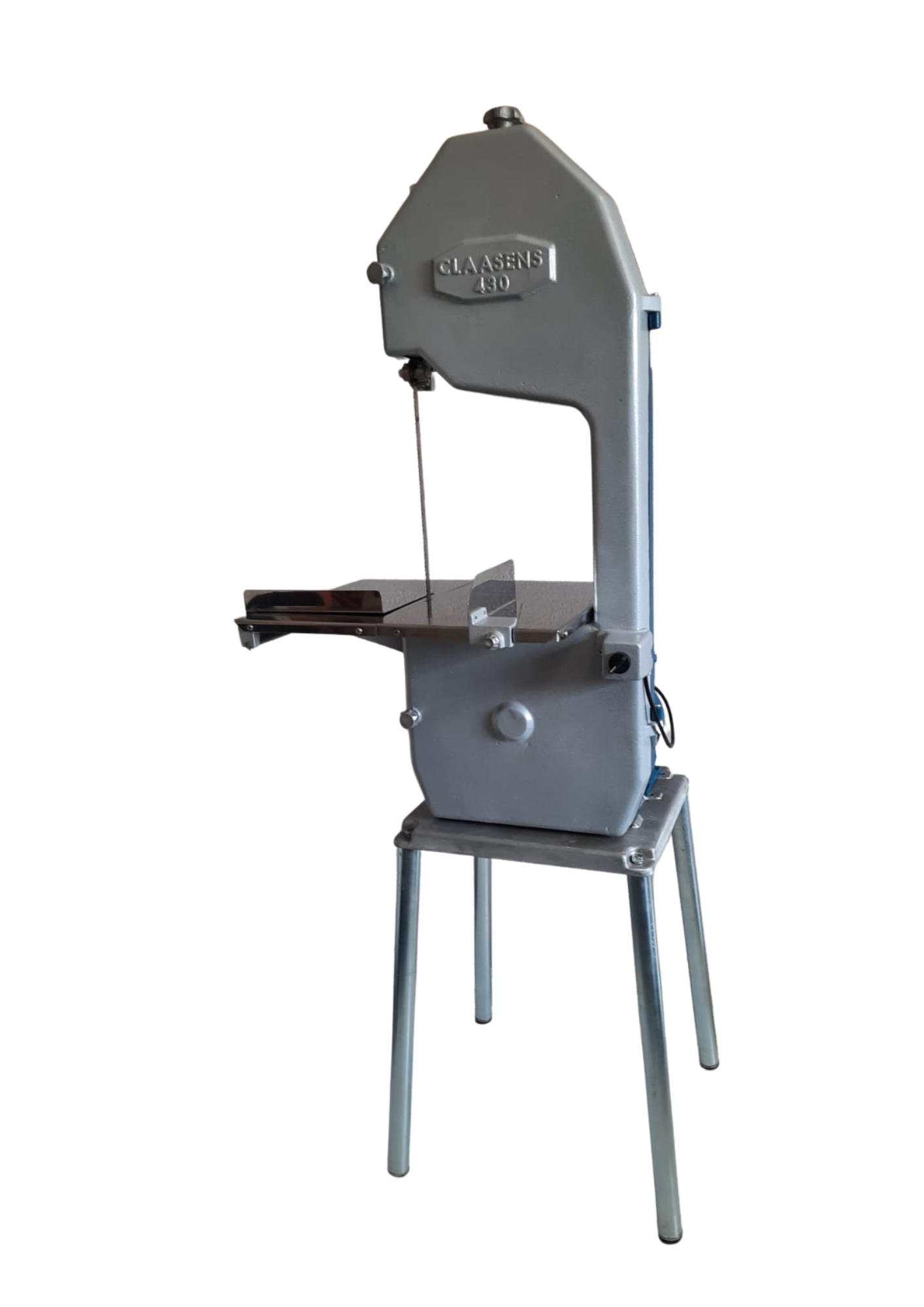

The Claasens Meat Band Saw 430 is engineered for precision, durability, and clean cutting performance—an ideal choice for meat processors, and serious home users.

Its 0.75kW high torque motor powers through carcasses with ease, while the industrial V-belt drive system ensures smooth, consistent performance over long work sessions. The W260mm x H310mm work opening offers ample room for medium-sized meat portions, and the spring-loaded blade tension system maintains a consistent cut.

All meat-contact surfaces—including the sliding board and cutting guide—are made from food-safe stainless steel, offering not only hygienic handling but also quick disassembly for cleaning. Blade changes are simplified with front-access removal. The adjustable stabilizers and blade scraper help extend blade life and cutting accuracy.

This is a second-generation Claasens design, refined for reliability and ease of use, and built to perform for years with minimal maintenance.

INSTRUCTIONS FOR USE

Before Operation:

• Ensure blade moves freely
• Use tension knob to verify optimal blade tension
• Verify all work surfaces are locked in place
• Close and secure the band saw door

Safe Cutting:

• Use included sliding board and thickness guide for accurate, safe cuts
• Keep hands clear of the blade at all times – use the board to push
• Maintain a clear, non-slip work area

Important Safety Notes:

• Only trained users should operate the machine
• Wear eye protection
• Avoid loose clothing or jewelry
• Wait for a full stop before cleaning or blade changes
• Always unplug before maintenance or blade replacement

WEIGHT & DIMENSIONS

• Product Code: 75VBS430
• Packed Weight: 50 kg
• Package Dimensions: L650mm x W550mm x H1150mm
